| 브랜드 이름: | ZXY |
| 모델 번호: | ZXY-EI60 |
| MOQ: | 협상 가능 |
| 가격: | 협상 가능 |
| 포장에 대한 세부 사항: | 카튼 |
| 지불 조건: | T/T |

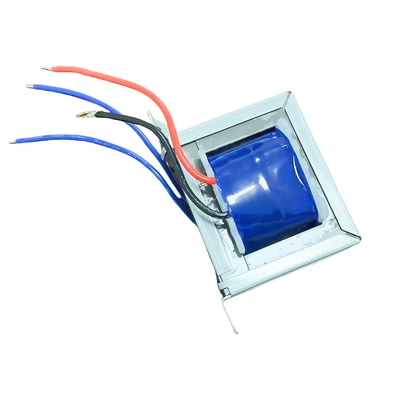

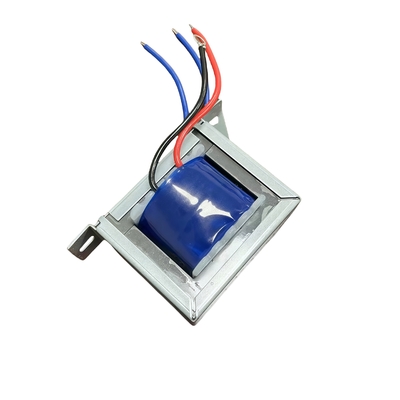

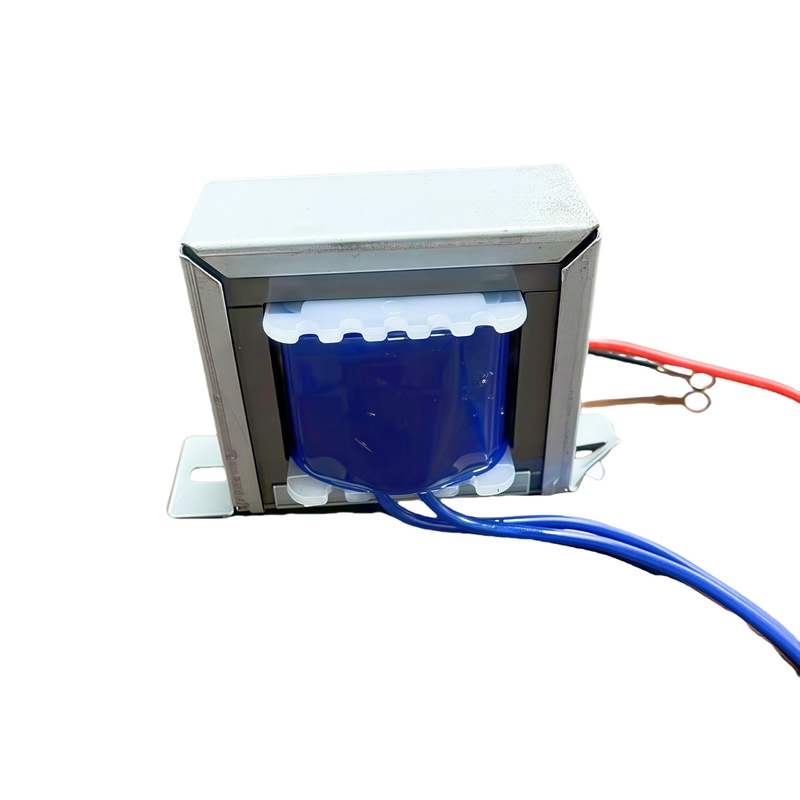

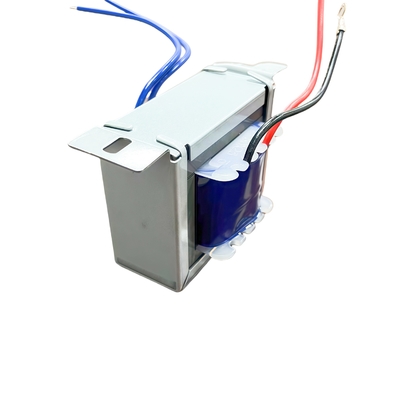

Designed for single-phase 24V output requirements, this customized EI60 low-frequency power transformer is ideal for stable power supply. Adopting EI60 specification iron core, with high permeability and low hysteresis loss, it effectively reduces energy loss during electromagnetic conversion, ensuring efficient power transmission in 50-60Hz low frequency environment. It supports standard utility input and accurately matches 24V single-phase output to meet the needs of industrial automation equipment, LED lighting systems, security monitoring equipment and other diverse scenarios. Through the rigorous winding process with high-quality insulating materials and strict voltage testing, it has excellent electrical insulation and overload protection, and can operate stably in a wide temperature range from -25℃ to +85℃. In addition, its compact EI-type structure design is easy to install and integrate, whether it is the internal layout of small equipment or the construction of large enclosure power modules, with customized parameter adaptation, to provide a continuous and reliable 24V power supply for the stable operation of the equipment.
1. Efficient and stable voltage output
--Low-frequency transformer (50/60Hz) design for stable, low-noise 24V single-phase power output, especially suitable for occasions sensitive to voltage fluctuations.
--EI-type iron core structure provides good magnetic circuit closure, reduces magnetic leakage, and has high efficiency (usually up to 90% or more).
2. High reliability and long life
--Using high quality silicon steel sheet (e.g. cold rolled oriented silicon steel), low iron loss, low temperature rise and stable long-term operation.
--Customized design can optimize the winding wire diameter and insulation materials, high temperature and moisture resistance, prolonging the service life.
3. Strong anti-interference ability
--Low-frequency transformer naturally isolates high-frequency noise (e.g. switching power supply EMI problems), suitable for industrial environments or precision equipment power supply.
--Single-phase design simplifies the circuit and reduces harmonic interference.
4. Flexible customized design
--Parameters can be adjusted according to demand (such as input voltage 110V/220V, output current capacity, winding structure, etc.).
| Parameter | Specification |
| Core Type | EI60 laminated silicon steel (low core loss) |
| Input Voltage | Customizable (110V/120V/220V/230V) |
| Output Voltage | 24V AC ±5% (Single Phase) |
| Frequency | 50/60Hz (dual frequency compatible) |
| Rated Power | 30VA to 300VA (customizable) |
| Efficiency | >90% (typical at full load) |
| Regulation | <5% (voltage regulation from no-load to full-load) |
| Insulation | Class B (130°C) standard (Class F/H optional) |
| Temperature Rise | <55°C at rated load (ambient 25°C) |
| Winding Material | High-purity copper (99.9% oxygen-free) |
| Dielectric Strength | 3000V AC (1min, primary to secondary) |
| Noise Level | <35dB (at 1m distance, typical) |
| Mounting | Vertical/horizontal (with optional brackets) |
| Custom Options | - Multiple taps |
| - Electrostatic shielding | |
| - Special coatings | |
| - IP ratings |
|
|
