| 브랜드 이름: | ZXY |
| 모델 번호: | ZXY3012 JT-DB-EPC |
| MOQ: | 협상 가능 |
| 가격: | 협상 가능 |
| 포장에 대한 세부 사항: | 판지 상자 |
| 지불 조건: | t/t |

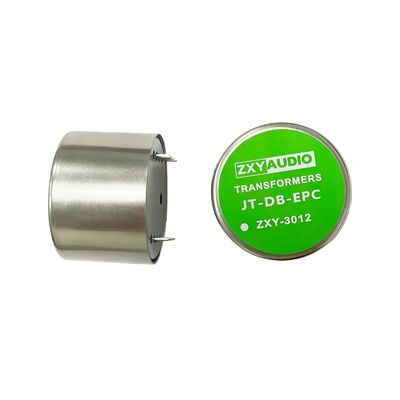

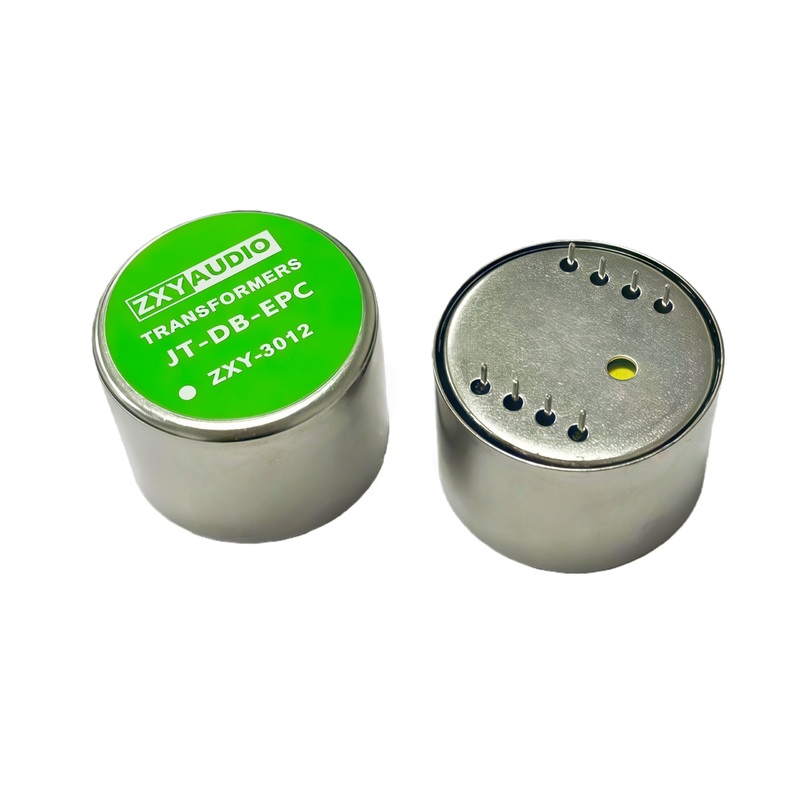

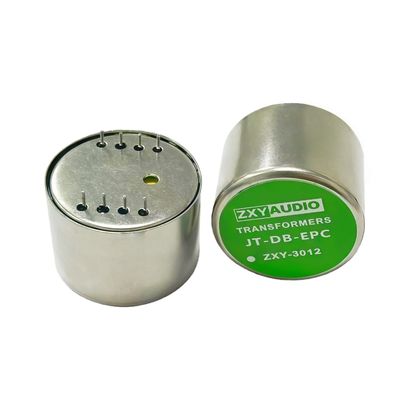

The ZXY3012 JT-DB-EPC is a high-performance audio transformer featuring a Permalloy core and a high-isolation shielding cover. Its core advantage lies in leveraging Permalloy's exceptionally high magnetic permeability to achieve extremely high inductance and outstanding low-frequency response, ensuring minimal signal transmission loss and superior fidelity. Simultaneously, its high-isolation shielding effectively suppresses electromagnetic interference (EMI) and radio frequency interference (RFI), maximally isolating common-mode noise and signal crosstalk between circuits. This transformer is particularly suited for professional audio equipment, communication systems, and precision measurement instruments demanding stringent requirements for sound quality, noise isolation, and signal integrity.
ZXY3012 JT-DB-EPC Permalloy Audio Transformer leverages its high permeability, low-loss permalloy core, and high-isolation shielding to deliver optimal performance in applications demanding stringent signal quality, noise suppression, and electrical isolation.
Typical application scenarios include:
1. Professional audio equipment and recording systems
Application Scenario: High-end mixing consoles, microphone preamps, audio interfaces, summing mixers.
Addressing Needs: Enables balanced transmission, effectively suppressing common-mode noise introduced during long-distance transmission. Its high isolation capability completely breaks ground loops between devices, eliminating troublesome hum (AC noise), making it an ideal choice for high-quality recording studios and live sound reinforcement systems.
2. Communication and Broadcasting Systems
Application Scenarios: Telephone hybrid networks, broadcast transmission equipment, intercom systems.
Solution: Ensures voice signal clarity within complex communication networks while isolating potential differences between devices. This safeguards system stability and equipment integrity.
3. Test and Measurement Instruments
Application Scenarios: Audio analyzers, network analyzers, distortion meters.
Requirements: In precision measurements, distortion and losses introduced by the transformer itself must be extremely low. Permalloy cores' low-loss characteristics ensure measurement accuracy, while shielding prevents external electromagnetic interference.
4. High-Fidelity Audio Systems
Application Scenarios: High-end DACs (Digital-to-Analog Converters), phono preamplifiers, preamplifiers.
Addressing Needs: Pursuing ultimate audio fidelity. Permalloy transformers deliver a wide, smooth frequency response with exceptional low-frequency performance. They isolate ground noise between digital and analog sections, enhancing signal-to-noise ratio for a purer musical backdrop.
5. Industrial and Medical Equipment
Application Scenarios: Medical monitoring equipment (e.g., ECG, EEG monitoring), audio signal links in industrial automation control systems.
Addressing Needs: In these high-safety-and-reliability fields, transformers provide essential electrical isolation, protecting expensive core equipment and personnel from accidental electric shocks or high-voltage surges.
In summary, the core value of ZXY3012 JT-DB-EPC lies in:
High permeability ensures audio fidelity (superior low-frequency response, minimal losses).
High isolation eliminates noise (breaks ground loops).
Shielding resists interference (blocks EMI/RFI).
Thus, it excels in any application demanding pristine signals, equipment isolation, and exceptional audio performance.
| Feature Category | Performance Characteristic | Description / Benefit |
| Core Material | Permalloy Core | Offers extremely high magnetic permeability, resulting in high inductance and superior performance at low frequencies compared to standard iron cores. |
| Shielding & Isolation | High Isolation Shielding Cover | Provides excellent immunity to Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI). Prevents noise coupling between circuit stages. |
| Electrical Isolation | High Interwinding Isolation | Effectively breaks ground loops, eliminating hum and buzz caused by potential differences between connected equipment. Enhances safety. |
| Frequency Response | Wide & Flat Frequency Response | Ensures minimal signal distortion and accurate audio reproduction across a broad spectrum, typically from low (e.g., 20Hz) to high frequencies. |
| Signal Integrity | Low Distortion & Low Loss | The high-efficiency core material minimizes signal loss (insertion loss) and harmonic distortion, preserving audio fidelity. |
| Common-Mode Rejection | Balanced Signal Transmission | Excellent for use in balanced audio lines (e.g., XLR). Effectively rejects common-mode noise picked up along cable runs. |
| Construction | Robust & Shielded Case | The metal shielding cover provides mechanical protection and serves as a functional Faraday cage against external noise. |
| Applications | Professional & Critical Audio | Ideal for professional audio consoles, microphone preamps, high-end DACs, broadcast equipment, and measurement systems where clean audio is critical. |
|
|
