| 브랜드 이름: | ZXY |

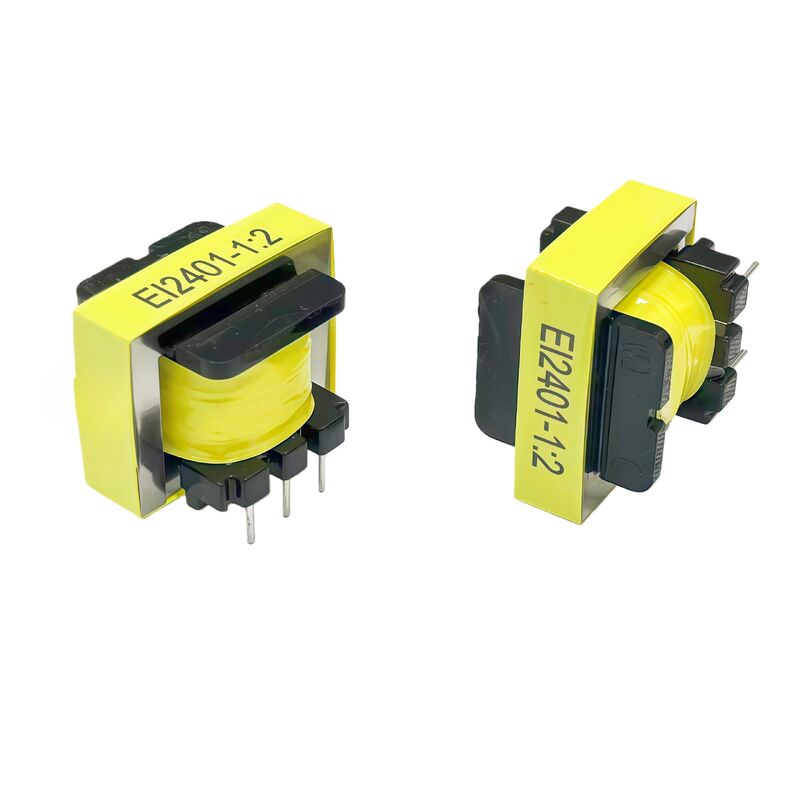

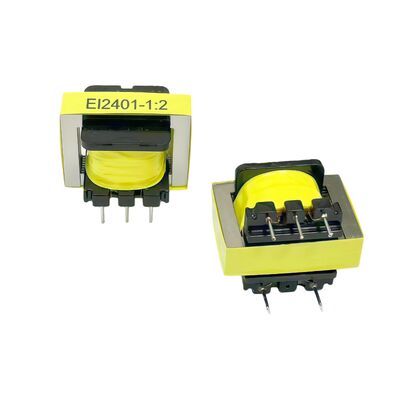

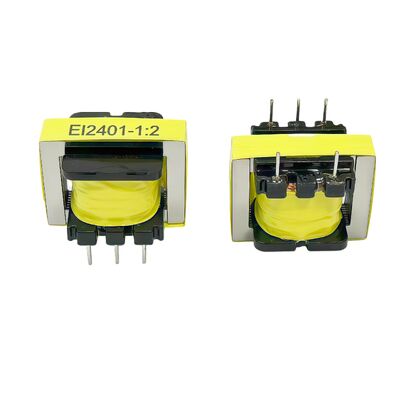

| 모델 번호: | EI2401 |
| MOQ: | 협상 가능 |
| 가격: | 협상 가능 |
| 포장에 대한 세부 사항: | 판지 상자 |
| 지불 조건: | 티/티 |
| Feature | Specification |
|---|---|
| Primary Function | Galvanic isolation, signal balancing/unbalancing, and voltage step-up |
| Turns Ratio | 1:2 (provides 6dB of voltage gain) |
| Frequency Response | 20 Hz - 20 kHz (±0.5 dB ref. 1 kHz) |
| Input Impedance | 600Ω (balanced or unbalanced) |
| Output Impedance | 2.4 kΩ (balanced or unbalanced) |
| Maximum Input Level | +24 dBu (before saturation) |
| Common-Mode Rejection Ratio (CMRR) | >70 dB (at 50/60 Hz) |
| Total Harmonic Distortion + Noise (THD+N) | <0.1% (typically @ +4 dBu, 1 kHz) |
| Core Material | High-permeability EI laminations for low distortion |
| Typical Applications | Professional audio interfaces, mixing consoles, preamps, DI boxes, and studio recording systems |
|
