| 브랜드 이름: | ZXY |
| 모델 번호: | ZXY-T9*5*3 |
| MOQ: | 협상 가능 |
| 가격: | 협상 가능 |
| 포장에 대한 세부 사항: | 판지 상자 |
| Category | Characteristic | Description / Value | Benefit |
|---|---|---|---|

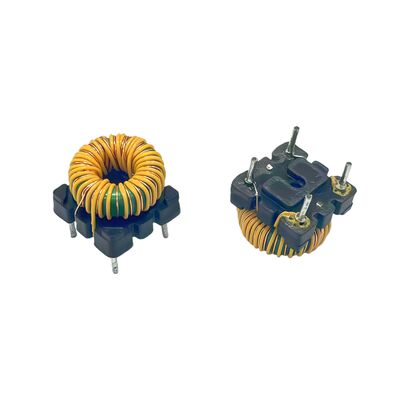

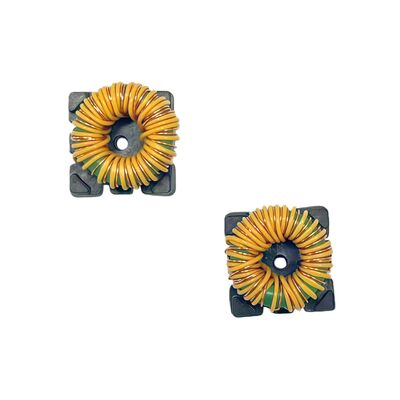

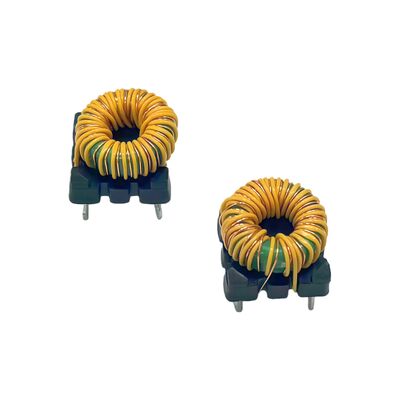

| Core Material | Composition | Iron Silicon Aluminum (FeSiAl / Sendust) Powder Core | Excellent balance of high saturation flux, low core loss, and good temperature stability |
| Core Material | Effective Permeability (μe) | Typically 26μ, 60μ, 75μ, 90μ, 125μ | Provides range of inductance options for different circuit requirements |
| Electrical Performance | High Saturation Flux Density (Bsat) | > 1.0 Tesla (typically ~1.05T) | High resistance to DC bias, prevents core saturation under high current |
| Electrical Performance | Low Core Loss | Excellent high-frequency loss characteristics | Minimizes energy loss and temperature rise at switching frequencies |
| Physical & Reliability | Fully Shielded Structure | Closed-loop toroidal magnetic path | Virtually no magnetic flux leakage, prevents interference |
| Physical & Reliability | High Curie Temperature | > 500°C | Maintains magnetic properties beyond normal operating temperatures |
| Application Advantages | Operating Frequency Range | 50 kHz to > 1 MHz | Suitable for modern high-frequency switching power supplies |
| Application Advantages | Temperature Stability | -55°C to +125°C+ | Consistent performance under varying ambient conditions |
|
